IoT End of Line Tester (IoT_EoLT)

IoT products differ from non-connected products because although they are mass produced each one is unique. To create that unique aspect every IoT product is christened.

As IoT products are manufactured and move toward the end the production a number of final checks and processes occur such as:

Electrical safety compliance testing

Product performance testing and calibration

IoT unique details christening

Label printing

Item report upload to IoT system

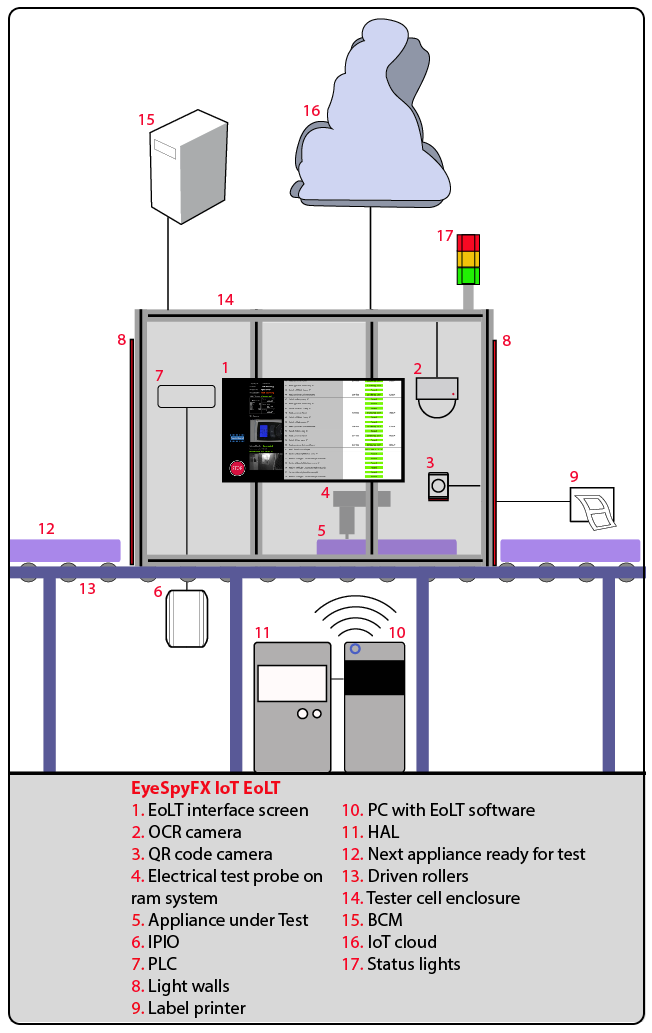

EyeSpyFX IoT End of Line Tester system carries out these processes.

EyeSpyFX IoT End of Line Testers are custom built to suit the specific production requirements for a specific environment and SKU. Testers vary in their physical manifestation from line to line.

Testers also vary in functional behaviour from line to line. Common operations include:

Loading an appropriate test script using a bar code scan

Completion of electrical safety tests

Establish communications with Appliance under Test via wifi, LAN, Bluetooth, RF, UART

Optical Character Recognition on LCD screens

Component placement camera tests

Completion of product performance tests and calibration

Christening operations including encrypted IoT identity keys

Serialisation of products

Print label with QR code

Integration with PLC to allow for full automation of drive in/out of tester cell. (Via IPIO)

Full reporting and upload to IoT cloud system

Live productivity counting and QA inspection using BCM
