IPIO is an I/O system comprising of a physical I/O device, a mobile app and an administration portal. The IPIO device has 4 output relays and 4 physical inputs (for wired door sensors) and four virtual input sources (for Sigfox devices).

Application areas

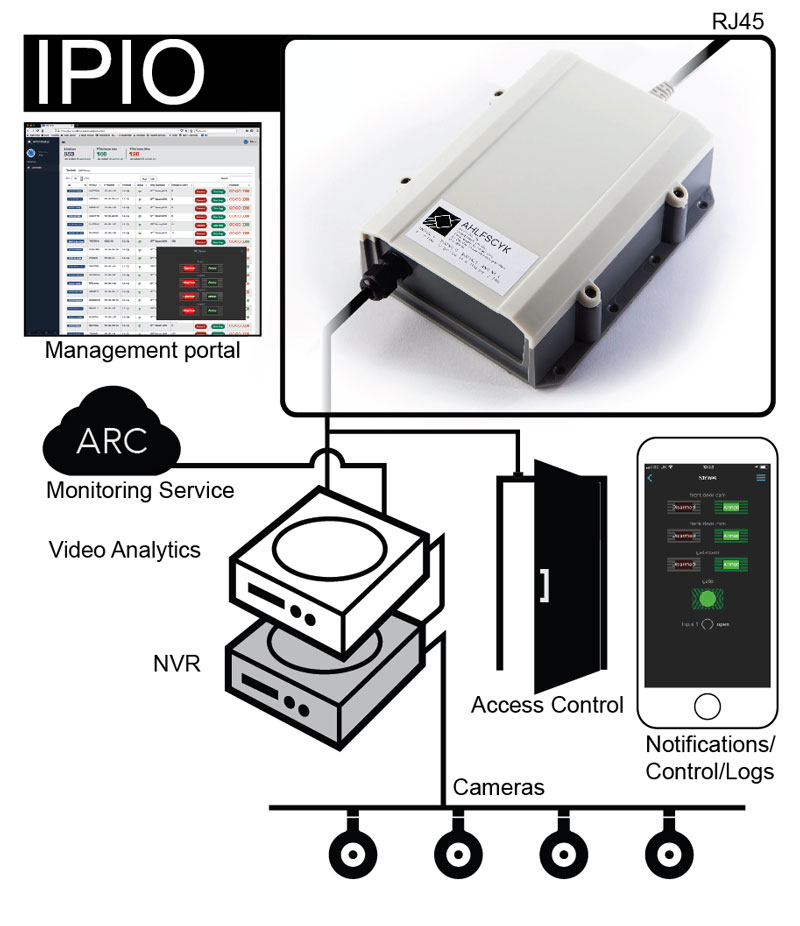

A typical application for IPIO is control of video Analytics Systems enabling end user to remotely arm and disarm video alarm systems. This can help reduce false positives.

IPIO is not limited to video analytics and access control. It has been deployed in wide range of applications ranging from home burglar alarms to monitoring industrial refrigerators to unmanned diesel pumps to control of factory PLCs. IPIO can be used to upgrade and replace a SIM card phone dialer, a keypad, key fob, key switch or swipe card.

Managers, Users and Installers

There are three levels of user in IPIO. Managers have access to all aspects of the app including logs and notifications preferences. Users have access to the control screen only. Installer mode gives access to the rules feature and other advanced settings.

Logs and Notifications

Every event that is recorded by the IPIO is logged. Logs are displayed in the mobile app. Corporate managers review the logs to understand staffing levels.

In app notifications alert managers when certain critical events occur.


IPIO has a rules feature that allows installers to create input to output rules, enabling automation actions to be programmed.


Download IPIO [Android | iOS]

The Management Portal

The management portal is for corporate customers.

Using this portal all ipio units [within a corporate group] can be controlled. Managers and Users can be deleted or moved from site to site. Log records can be wiped clear and specific IPIO units can be suspended. Learn More

Portal Logon [m2mservices.mobi]

Related Blog Articles
EN61000-6-3, EN50130-4, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8
